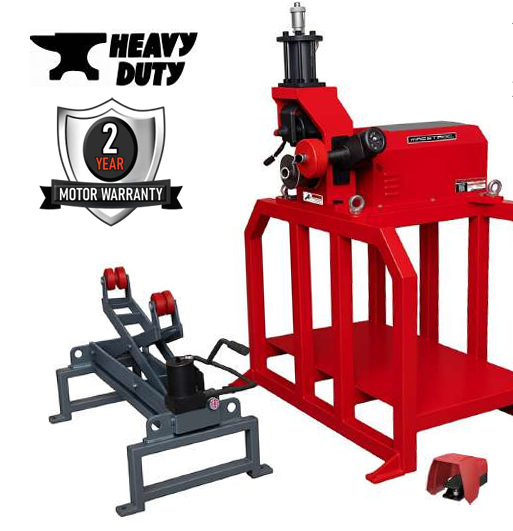

ROLL GROOVING TOOL, MRG-32IVA

Macstroc MRG-32IVA Heavy Duty Electric Hydraulic Roll Grooving Machine is designed for large pipes 8″–32″ with a maximum wall thickness of 15mm. Equipped with an advanced hydraulic feeding system, it creates accurate grooves by mechanically advancing a grooving roll into the pipe, supported by a knurled drive roll. Ideal for high-volume work both on-site and in workshops.

SPECIFICATIONS
8″–16″ pipes, including SCH10, SCH20, and SCH40
18″–32″ pipes, with SCH10, SCH20, and STD specifications.
Motor: 2200w induction 380V / 50/60Hz
Speed: 20 RPM
Standard roll set: [8—12”] [14—16”] [18—24”] [26—
32”]
Max. pipe wall thickness: 13 mm (up to 15 mm with slow
feed)
Net weight: 430 kg
