Flange Spreader

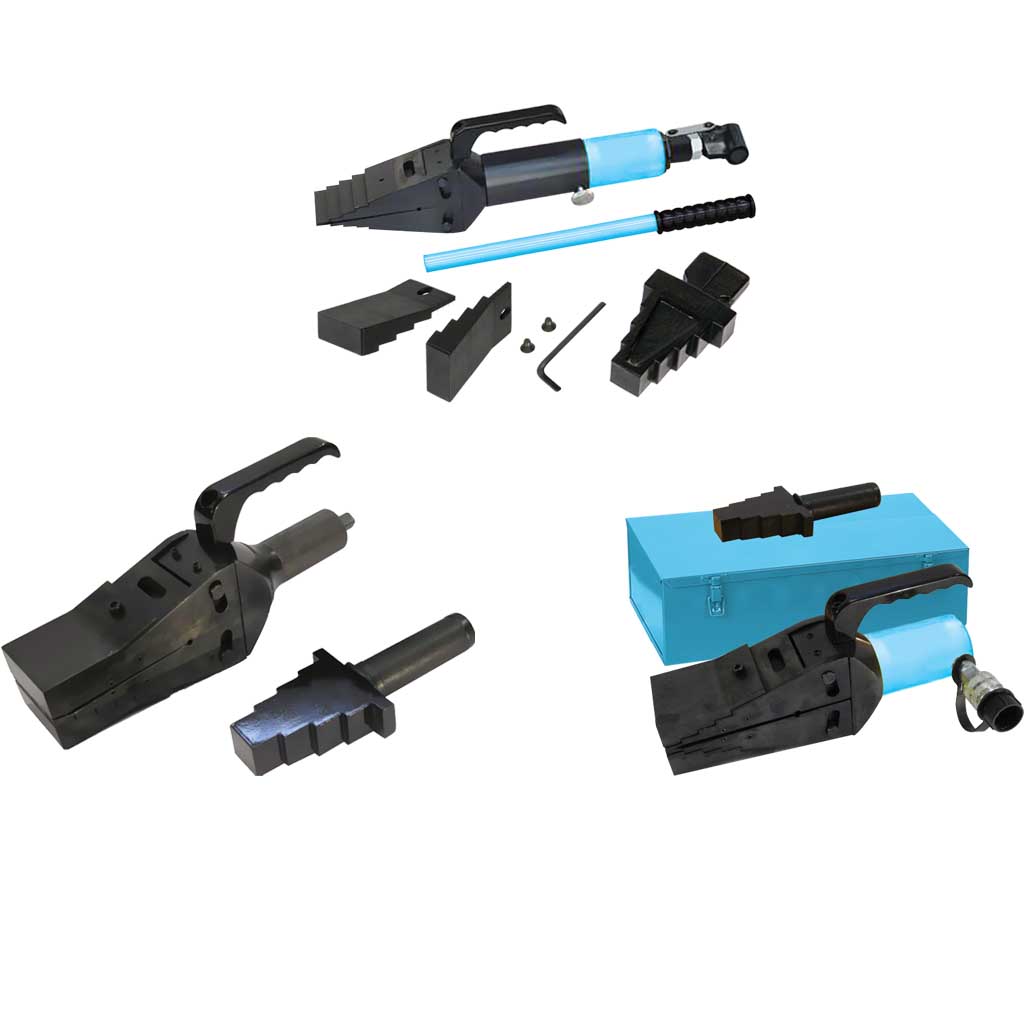

Features and Functions : 1, Hydraulic and Mechanical Flange Spreaders

2, Friction-free, smooth and parallel wedge movement with unique interlock wedge design.

3, Eliminates flange damage and risk of spreading arm failure.

4, Hydraulic and Mechanical Wedge Spreaders

5, Hydraulic Wedge Spreader HHP-1481

6, Stepped spreader arm design – each step can spread under full load

7, Requires very small access gap of only 6 mm

8, Includes safety block and stepped blocks

• Mechanical Flange Spreader HHP-08 1. Manual operation 2. Use stepped blocks to increase wedge opening up to 77 mm
• Self-contained Hydraulic Flange Spreader HHP-10 1. Manual hydraulic operation 2. Use stepped blocks to increase wedge opening up to 81 mm 3. Safe and reliable hydraulic system
• Hydraulic Flange Spreader HHP-1481 1. Operated by hydraulic pump with rated pressure of 700 bar 2. Use stepped blocks to increase wedge opening up to 81 mm 3. Supplied with 3/8NPT male coupler and dust cap off on safety
