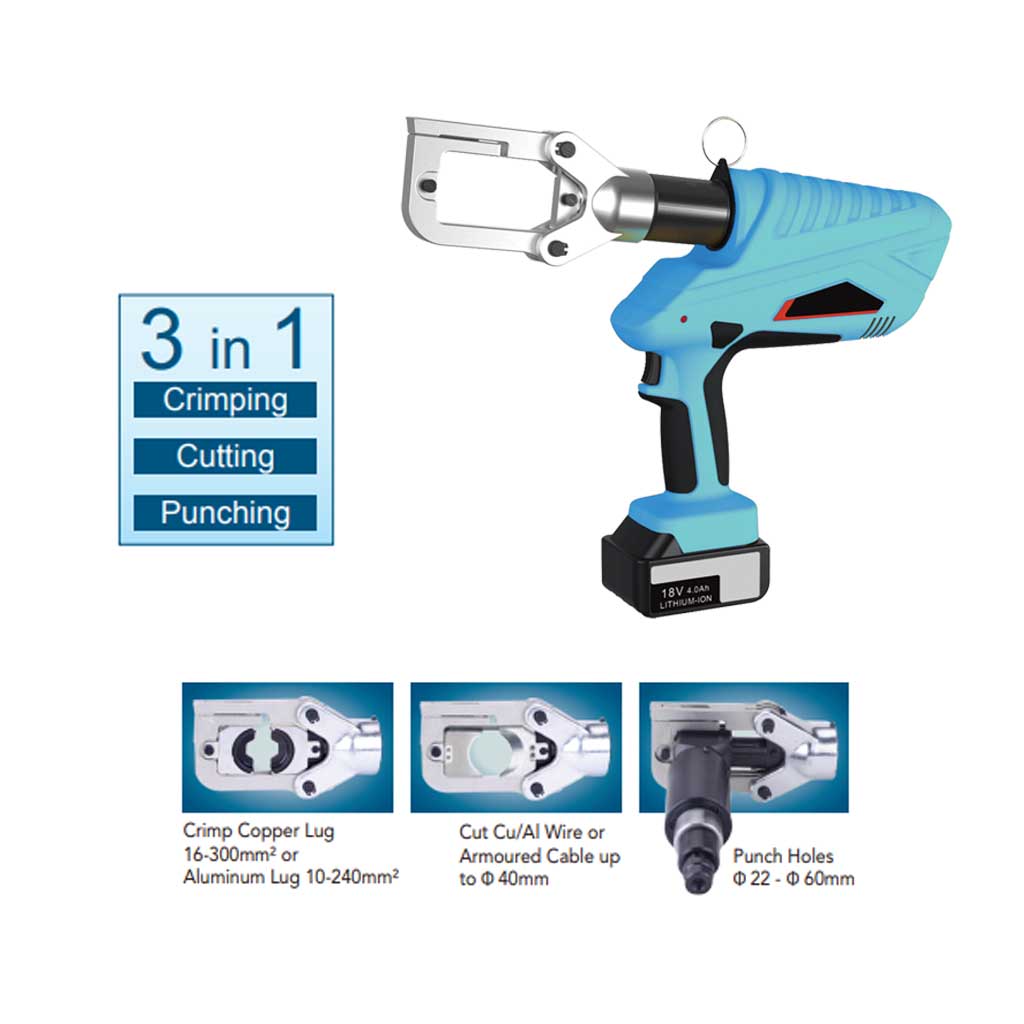

Hydraulic Crimping MQB-60
Hydraulic Crimping MQB-60

Hydraulic Crimping MQB-60



Download Full Brochure

Categories , , , Tags , , , , Brand: ,

Characteristics:

  •  One universal head to complete crimping, cutting and punching jobs.
  •  Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
  •  10000+ cycle service life.
  •  Ram retracts to original position automatically when operation is complete.
  •  Manual retraction in case of need.
  •  Audible buzzer and red LED light in case of error.
  •  Quick motor stop for higher user safety.
  •  Powerful 18V Li-ion battery with low battery warning.
  •  Ergonomic 2-component grip area and balanced center of gravity.
  •  Sturdy plastic storage box.
Hydraulic Ram Output 6.5 Ton
Ram Stroke 42 mm
Battery Capacity 90 cutting cycles / 320 crimping cycles
100 punching cycles
Cutting Range Ø40 mm (Cu/Al and armoured cable)
Crimping Range 16-300 mm2
Punching Range Ø22 – Ø60 mm
Battery 18V/4.0Ah Li-ion
Charging Time 2 Hours
Crimping Dies 16, 25, 35, 50, 70, 95, 120, 150
185, 240, 300 mm2
Punching Dies 22, 27, 34, 43, 49, 60 mm
Qty of Battery 2 pcs
Charger 1 pc
Blade 1 set
Adapter Crimping – 1 pc & Punching – 1 pc
Draw Stud M20 x 1.5 – 1 pc & M10 x 1 – 1 pc
Spacer 1 pc
Seals 1 set
Weight (Kg) 21.4
Packing Size (mm) 585 x 500 x 170
