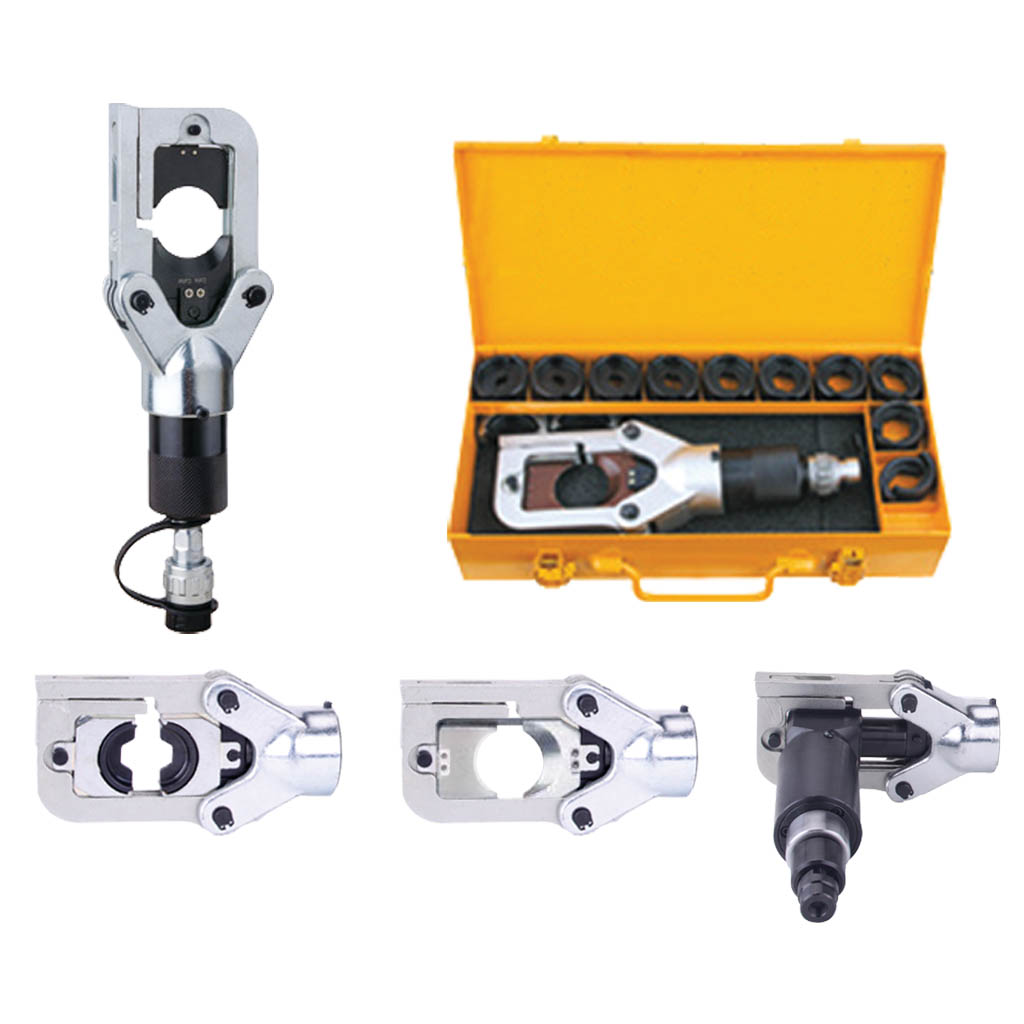

Hydraulic Cable Cutter Head
Features and Functions : ? Universal head with quick coupling, rotates 360o, flip top style ? For connecting to hydraulic drive units with 70Mpa operating pressure for the best possible crimping , cutting and punching results
Features and Functions : ? Universal head with quick coupling, rotates 360o, flip top style ? For connecting to hydraulic drive units with 70Mpa operating pressure for the best possible crimping , cutting and punching results
| Code | MHT – 60N | |
| Cutting Force | 60 KN | |
| Stroke | 42 mm | |
| Crimping Range | Cu 16-300 mm² Al 10-240 mm² |
|
| Cutting Range | ¢ 45 mm ( Cu / Alu cable & armoured Cu / Alu cable ) | |
| Punching Range | ¢ 22.5-61.5 mm in the 3.5 mm mild steel The thickness below 2mm ( 16.5-115.5mm ) for mild steel |
|
| Length | 540 mm ( approx ) | |
| Weight | 3.5 kg ( approx ) | |
| Package | Steel Case ( W – 3.5 kg ) | |
| Crimping Die | 16 , 25 , 35 , 50 , 75 , 95 , 120 , 150 , 185,240 , 300 mm² | |
| Punches & Die | ( Type – C ) 22.5 , 28.3 , 34.6 , 43.2 , 49.6 , 61.5 mm . | |
? Blade – 1pc ? Spacer – 1pc ? Adapter for crimping – 1pc ? 3/4”,16UN Draw stud – 1pc ? 3 in 1 ? Sealing ring of cylinder – 1set ? Adapter for punching – 1pc ? 7/16”,20UN Draw stud – 1pc ? Sealing ring of safety valve – 1set
